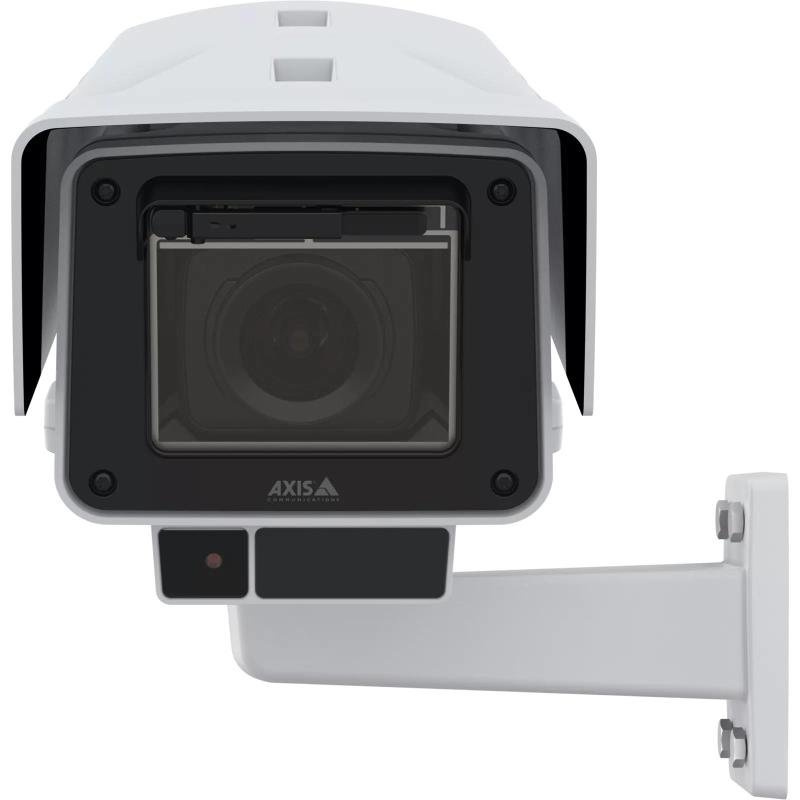

NET CAMERA Q1726-LE BLOCK/03393-001 AXIS

NET CAMERA Q1726-LE BLOCK/03393-001 AXIS
NET CAMERA Q1726-LE BLOCK/03393-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
124,259ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 460882
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q1726-LE Block Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Box. Lens viewing angle, horizontal: 101.8 - 44°, Lens viewing angle, vertical: 54 - 24.6°, Camera pixel size: 2.9 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.17x, Focal length range: 4.7 - 10 mm, Focus: Motorized
  • Vendor Homepage: https://www.axis.com/products/axis-q1726-le
  • Name: NET CAMERA Q1726-LE BLOCK/03393-001 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Mounting type: Ceiling/Wall/Pole
  • Product colour: White
  • Housing material: Aluminium/Plastic
  • Protection features: Vandal proof/Wind resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 120
  • Languages support: Multi
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 101.8 - 44
  • Lens viewing angle, vertical: 54 - 24.6
  • Camera pixel size: 2.9
  • Camera shutter speed: 1/49500 - 2
  • Optical sensor size: 1/1.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.17
  • Number of lenses: 1
  • Focal length range: 4.7 - 10
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 1.2
  • Minimum aperture number: 1.1
  • Detect distance (tele): 141
  • Detect distance (wide): 65
  • Identify distance (tele): 14
  • Identify distance (wide): 6.4
  • Normal focusing range: 0.5 -
  • Observe distance (tele): 56
  • Observe distance (wide): 26
  • Recognize distance (tele): 28
  • Recognize distance (wide): 13
  • Night vision: Yes
  • Night vision distance: 50
  • LED type: IR
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: AV1/H.264/H.265
  • Supported graphics resolutions: 2688 x 1512
  • Supported video modes: 1512p
  • Frame rate: 120
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Image quality adjustment: Contrast
  • Image stabilizer: Yes
  • Signal-to-Noise Ratio (SNR): 55
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
  • Cabling technology: 10/100/1000Base-T(X)
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDXC/MiniSDHC
  • Flash memory: 8
  • Internal memory: 4
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 1
  • RS-485 ports: 1
  • Microphone in: Yes
  • DC-in jack: Yes
  • Alarm input channels: 4
  • Alarm output channels: 4
  • Active tampering alarm: Yes
  • HTTPS encryption: Yes
  • Privacy protection: Yes
  • Video motion detection: Yes
  • Power source type: PoE,DC
  • Power consumption (typical): 6.9
  • Power consumption (max): 25.5
  • Power consumption (Power over Ethernet (PoE)): 7.7
  • DC output voltage: 10,28
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 178
  • Depth: 441
  • Height: 303
  • Weight: 4844
  • Compliance certificates: CE/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
  • Number of cameras: 1
  • Doesnt contain: Cadmium/Lead/Mercury
  • Iris: Yes
  • Suitable for outdoor use: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03024
  • Unit Calculated Weight: 5.85
Specifications
Active tampering alarmYes
Alarm input channels4
Alarm input/outputYes
Alarm output channels4
Audio detectionYes
Auto focusYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Cabling technology10/100/1000Base-T(X)
Camera pan controlYes
Camera pixel size2.9
Camera shutter speed1/49500 - 2
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDXC/MiniSDHC
Compliance certificatesCE/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
Connectivity technologyWired
Day/night modeYes
DC output voltage10,28
DC-in jackYes
Depth441
Detect distance (tele)141
Detect distance (wide)65
Doesn\'t containCadmium/Lead/Mercury
Dynamic range120
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8
Focal length range4.7 - 10
FocusMotorized
Fog proofYes
Form factorBox
Frame rate120
Gain control typeAuto
Height303
Housing materialAluminium/Plastic
HTTPS encryptionYes
Identify distance (tele)14
Identify distance (wide)6.4
IK codeIK10
Image quality adjustmentContrast
Image stabilizerYes
Internal memory4
International Protection (IP) codeIP66, IP67
IrisYes
Languages supportMulti
LED typeIR
Lens viewing angle, horizontal101.8 - 44
Lens viewing angle, vertical54 - 24.6
Maximum aperture number1.2
Maximum resolution2688 x 1512
Microphone inYes
Minimum aperture number1.1
Minimum illumination0
Mounting typeCeiling/Wall/Pole
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance50
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Normal focusing range0.5 -
Number of cameras1
Number of lenses1
Observe distance (tele)56
Observe distance (wide)26
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/1.8
Optical zoom2.17
Placement supportedOutdoor
Power consumption (max)25.5
Power consumption (Power over Ethernet (PoE))7.7
Power consumption (typical)6.9
Power source typePoE,DC
Preset pointsYes
Privacy protectionYes
Product colourWhite
Protection featuresVandal proof/Wind resistant
PTZ controlYes
PTZ modesDigital PTZ
Recognize distance (tele)28
Recognize distance (wide)13
RS-422 ports1
RS-485 ports1
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Suitable for outdoor useYes
SummaryAxis Q1726-LE Block Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Box. Lens viewing angle, horizontal: 101.8 - 44°, Lens viewing angle, vertical: 54 - 24.6°, Camera pixel size: 2.9 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.17x, Focal length range: 4.7 - 10 mm, Focus: Motorized
Supported graphics resolutions2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
Supported video modes1512p
Total megapixels4
TypeIP security camera
Video compression formatsAV1/H.264/H.265
Video motion detectionYes
Video streamingYes
Weight4844
Wide Dynamic Range (WDR)Yes
Width178
Zoom capabilityYes
Specs
Category CodeFNC
Description

Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide (4.7-10 mm) lens, it features a built-in wiper to withstand harsh outdoor environments.

Superior image quality
AXIS Q1726-LE offers 4 MP resolution at 60 fps and features a large 1/1.8" sensor to ensure consistent performance even in low light. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. What’s more, it’s available with a wide (4.7-10 mm) lens with a 101.8°-44° horizontal field of view for surveillance in wide, open areas. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

For harsh, outdoor environments
Ideal for any outdoor location, AXIS Q1726-LE comes with a built-in wiper and front window with carbon nanotube film heater to guarantee great images even in snow, rain, ice, and fog. It can operate in temperatures from -40 °C to 60 °C (-40 °F to 140 °F). And it can withstand winds up to 60 m/s (134 mph). This future-proof camera has a standardized enclosure design that can be reused with any Axis block camera. This makes it a more efficient and environmentally friendly option and ensures you get the full value from your investment. What’s more, the front glass is IK08-rated, and the enclosure is IK10-, NEMA 4X-, NEMA TS-2-, IP66-, and IP67-rated to withstand harsh weather conditions and impacts.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful with strong security
Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.

  • Superior image quality in 4 MP
  • Built-in wiper for harsh weather
  • Next-generation AI-powered analytics
  • Wide lens for open area surveillance
  • Built-in cybersecurity with Axis Edge Vault
