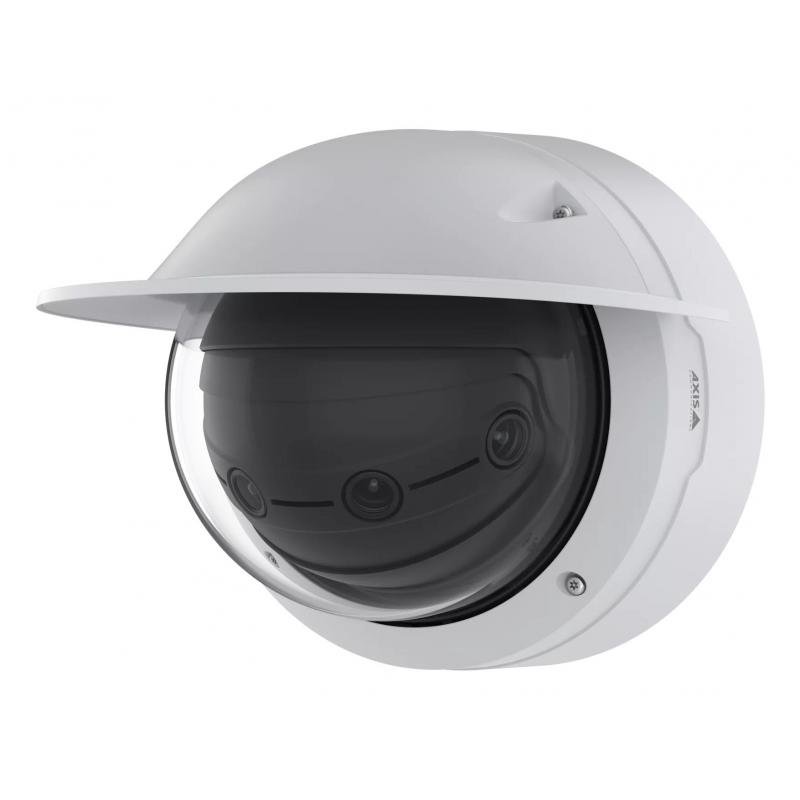

NET CAMERA Q3839-PVE29MP/02657-001 AXIS

NET CAMERA Q3839-PVE29MP/02657-001 AXIS
NET CAMERA Q3839-PVE29MP/02657-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 7552 x 3776
  • Total megapixels: 29
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
155,181ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 448681
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q3839-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-q3839-pve
  • Name: NET CAMERA Q3839-PVE29MP/02657-001 AXIS
  • Category Code: FNC
  • Model: Q3839-PVE
  • Form factor: Dome
  • Mounting type: Wall/Pole
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-8
  • Dynamic range: 120
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 180
  • Lens viewing angle, vertical: 90
  • Tilt angle range: 30 - 88
  • Pan range: -176 - 176
  • Camera pixel size: 2
  • Camera shutter speed: 1/8500 - 1/5
  • Sensor type (panoramic camera): CMOS
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 4
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Detect distance: 88.3
  • Observe distance: 35
  • Recognize distance: 17.7
  • Lens diameter: 4.6
  • Fixed focus: Yes
  • Identify distance: 8.8
  • Maximum aperture number: 1.8
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 7552 x 3776
  • Total megapixels: 29
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
  • Text caption overlay: Yes
  • Audio system: 1-way
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Active tampering alarm: Yes
  • Network access storage (NAS): Yes
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 9.74
  • Power consumption (max): 19.1
  • DC output voltage: 12
  • DC output current: 0.05
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 3320
  • Number of cameras: 1
  • Mounting kit: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0245
  • Unit Calculated Weight: 4.4
Specifications
Active tampering alarmYes
Audio system1-way
Built-in processorYes
Camera pan controlYes
Camera pixel size2
Camera shutter speed1/8500 - 1/5
Camera tilt controlYes
Card reader integratedYes
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output current0.05
DC output voltage12
DC-in jackYes
Detect distance88.3
Drilling template includedYes
Dynamic range120
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focusYes
Flash memory8192
Form factorDome
Frame rate30
Gain control typeAuto
Housing materialAluminium/Polycarbonate (PC)
Identify distance8.8
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness/White balance
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67
LED typeIR
Lens diameter4.6
Lens viewing angle, horizontal180
Lens viewing angle, vertical90
ManualYes
Maximum aperture number1.8
Maximum resolution7552 x 3776
Microphone inYes
Minimum illumination0.03
Mounting kitYes
Mounting typeWall/Pole
Network access storage (NAS)Yes
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of sensors4
Observe distance35
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.8
Pan range-176 - 176
Placement supportedOutdoor
Power consumption (max)19.1
Power consumption (typical)9.74
Power source typeDC,PoE
Processor modelARTPEC-8
Product colourWhite
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
RAM capacity4096
Recognize distance17.7
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q3839-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Terminal block portYes
Text caption overlayYes
Tilt angle range30 - 88
Total megapixels29
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight3320
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

This multisensor camera offers 29 MP at 30 fps to deliver ultra-high overviews with no blind spots - perfect when you don’t want to miss a thing. Plus, a deep learning processing unit enables the use of advanced analytics.

Ultra clear overview with no blind spots
With up to 8K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.

Cost-effective and flexible
AXIS Q3839-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant.

Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.

  • 8K multisensor camera with one IP address
  • 180° horizontal, 90° vertical coverage
  • AI-powered with support for advanced analytics
  • Horizon straightening and lossless zoom
  • Built-in cybersecurity with Axis Edge Vault

ModelQ3839-PVE
NameNET CAMERA Q3839-PVE29MP/02657-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/e47d5c7c-7800-471d-bf85-8daa51ed965d.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e47d5c7c-7800-471d-bf85-8daa51ed965d.Jpeg
Unit Calculated Volume0.0245
Unit Calculated Weight4.4
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q3839-pve
