02403-002

02403-002
02403-002
  • Video input channels: 8
  • Wi-Fi: No
  • Number of HDDs supported: 1
  • Ethernet LAN (RJ-45) ports: 10
Врз основа на 0 коментари. - Напиши коментар
152,118ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 396031
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02403-002. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Number of simultaneously playbacked channels: 9 channels. HDD capacity: 2 TB, Total installed storage capacity: 2 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Brand compatibility: Axis, LED indicators: HDD, PoE, Product colour: Black. Power consumption (max): 30 W, Power consumption (typical): 27 W, AC input voltage: 100 - 240 V
  • Vendor Homepage: https://www.axis.com/products/axis-s2108
  • Name: NET CAMERA STATION S2108/02403-002 AXIS
  • Category Code: NVR
  • Model: S2108
  • Model name: 02403-002
  • Video input channels: 8
  • Number of simultaneously playbacked channels: 9
  • Video recording modes: 1080p/720p
  • Maximum resolution: 1920 x 1080
  • Internal memory: 8192
  • Operating system installed: Windows 10 IoT Enterprise
  • Number of HDDs installed: 1
  • HDD capacity: 2000
  • Number of HDDs supported: 1
  • Total installed storage capacity: 2000
  • Ethernet LAN (RJ-45) ports: 10
  • Ethernet LAN data rates: 10/100/1000
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 8
  • HDMI ports quantity: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Audio output: 1
  • Line-in: Yes
  • Networking standards: IEEE 802.3at
  • Brand compatibility: Axis
  • LED indicators: HDD/PoE
  • Product colour: Black
  • Built-in processor: Yes
  • Power consumption (max): 30
  • Power consumption (typical): 27
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Output current: 2.3
  • Power: 180
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 10 - 90
  • Compliance certificates: RoHS
  • Width: 310
  • Depth: 230
  • Height: 44
  • Weight: 3500
  • AC adapter included: Yes
  • Cables included: AC
  • Quick installation guide: Yes
  • Unit Calculated Volume: 0.018
  • Unit Calculated Weight: 3.9
Specifications
AC adapter includedYes
AC input frequency50/60
AC input voltage100 - 240
Audio output1
Brand compatibilityAxis
Built-in processorYes
Cables includedAC
Compliance certificatesRoHS
Depth230
Ethernet LAN (RJ-45) ports10
Ethernet LAN data rates10/100/1000
HDD capacity2000
HDMI ports quantity1
Height44
Internal memory8192
LED indicatorsHDD/PoE
Line-inYes
Maximum resolution1920 x 1080
Networking standardsIEEE 802.3at
Number of HDDs installed1
Number of HDDs supported1
Number of simultaneously playbacked channels9
Operating relative humidity (H-H)10 - 90
Operating system installedWindows 10 IoT Enterprise
Operating temperature (T-T)0 - 40
Output current2.3
Power consumption (max)30
Power consumption (typical)27
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Product colourBlack
Quick installation guideYes
Storage relative humidity (H-H)10 - 90
SummaryAxis 02403-002. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Number of simultaneously playbacked channels: 9 channels. HDD capacity: 2 TB, Total installed storage capacity: 2 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Brand compatibility: Axis, LED indicators: HDD, PoE, Product colour: Black. Power consumption (max): 30 W, Power consumption (typical): 27 W, AC input voltage: 100 - 240 V
Total installed storage capacity2000
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Video input channels8
Video recording modes1080p/720p
Weight3500
Width310
Specs
Category CodeNVR
Description

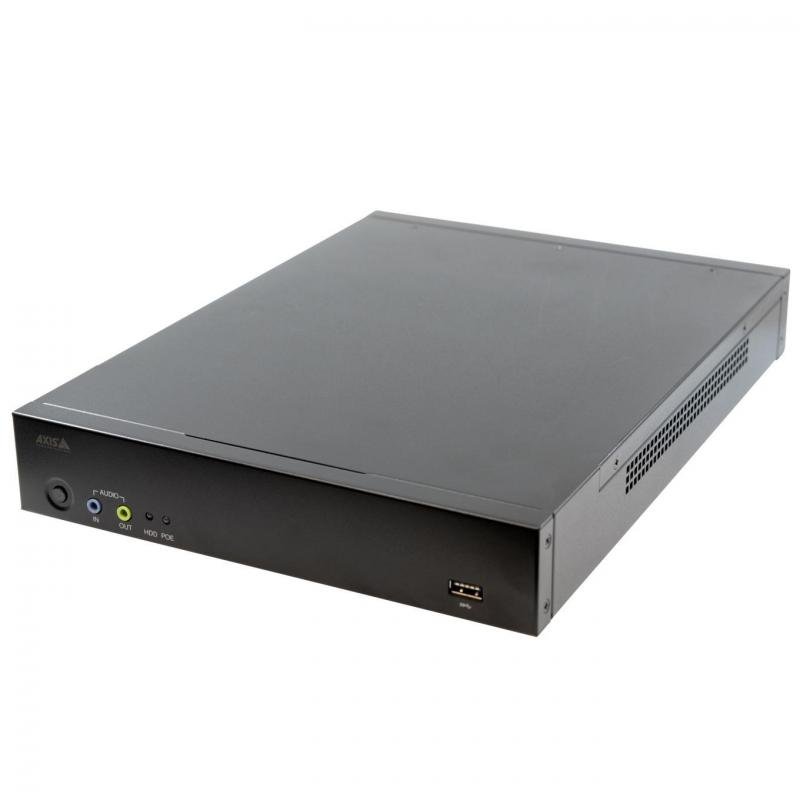

This affordable, all-in-one appliance includes a VMS client/server, storage, and an integrated PoE switch—all validated to meet the demands for reliable, basic surveillance up to 1080p. Designed to fit almost everywhere, AXIS S2108 is one of the most compact recorders on the market. It comes preloaded with AXIS Camera Station and preconfigured software licenses, so out-of-the-box you get seamless and reliable integration to all your Axis network cameras. Extensively tested with a wide range of Axis products, this smart appliance is easy to install, use, and maintain. Furthermore, it includes an advanced replacement service and a 5-year hardware warranty.

  • AXIS Camera Station licenses included; All-in-one solution with integrated PoE switch; Ease of installation; Ideal for basic surveillance needs; Validated with extensive support

ModelS2108
Model name02403-002
NameNET CAMERA STATION S2108/02403-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/36ff41e1-e686-46fa-99c7-435d93caf0e0.Jpeg
Power180
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/36ff41e1-e686-46fa-99c7-435d93caf0e0.Jpeg
Unit Calculated Volume0.018
Unit Calculated Weight3.9
Vendor Homepagehttps://www.axis.com/products/axis-s2108
