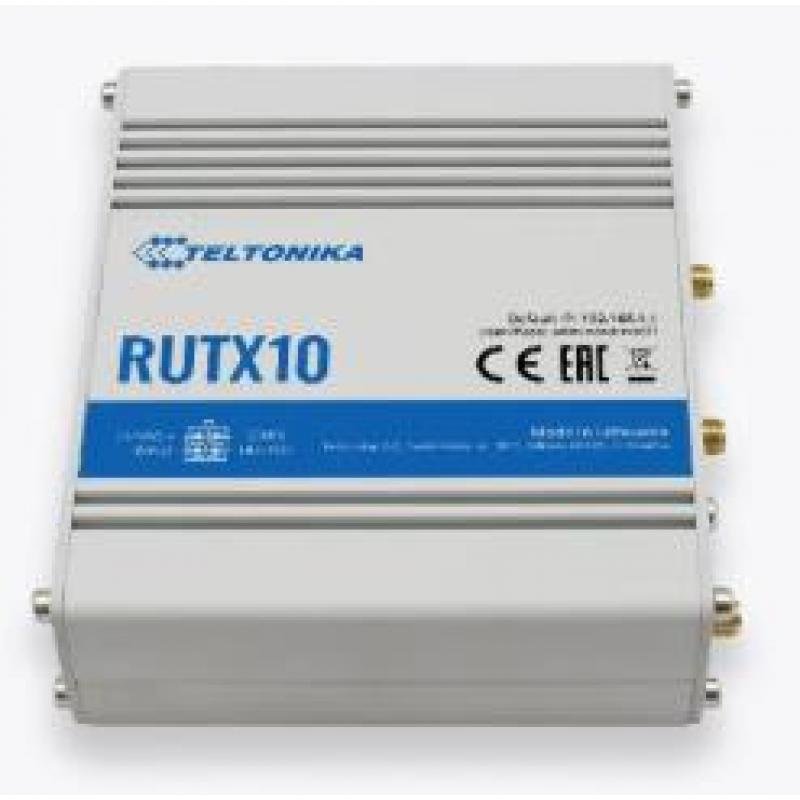

RUTX10 Tabletop router

RUTX10 Tabletop router
RUTX10 Tabletop router
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 3
  • USB port: Yes
Врз основа на 0 коментари. - Напиши коментар
14,924ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 423892
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika RUTX10. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, 192-bit AES, 256-bit AES, AES-CCMP, DES, SNMP, SNMPv2, SNMPv3, SSH,..., Authentication method: X.509. Routing protocols: BGP, EIGRP, OSPF, RIP, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...
  • Vendor Homepage: https://teltonika-networks.com/product/rutx10/#description
  • Name: NET ROUTER 1000M 4PORT/RUTX10 TELTONIKA
  • Category Code: WRO
  • Model name: RUTX10
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867
  • Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
  • Ethernet WAN: Yes
  • WAN connection type: RJ-45
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10/100/1000
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11e/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Flow control support: Yes
  • Port forwarding: Yes
  • Dynamic DNS (DDNS): Yes
  • Policy-based routing: Yes
  • SSID-based VLAN assignment: Yes
  • Static route: Yes
  • Ethernet LAN (RJ-45) ports: 3
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • DC-in jack: Yes
  • Web-based management: Yes
  • Quality of Service (QoS) support: Yes
  • Wake-on-LAN ready: Yes
  • Reset button: Yes
  • Security algorithms: 128-bit WEP/192-bit AES/256-bit AES/64-bit WEP/AES-CCMP/DES/SNMP/SNMPv2/SNMPv3/SSH/SSL/TLS/TKIP/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK
  • Authentication method: X.509
  • Firewall: Yes
  • Access Control List (ACL): Yes
  • Guest access: Yes
  • Stateful Packet Inspection (SPI): Yes
  • Filtering: Yes
  • MAC address filtering: Yes
  • IP address filtering: Yes
  • URL filtering: Yes
  • DMZ support: Yes
  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Routing protocols: BGP/EIGRP/OSPF/RIP/RIP-1/RIP-2
  • Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, WOL
  • Product colour: White
  • On/off switch: Yes
  • Product type: Tabletop router
  • AC adapter included: Yes
  • Manual: Yes
  • Quick start guide: Yes
  • Antenna design: External
  • Built-in processor: Yes
  • Processor architecture: ARM Cortex A7
  • Processor frequency: 717
  • Processor cores: 4
  • Internal memory: 256
  • Flash memory: 256
  • Plug and Play: Yes
  • Firmware upgradeable: Yes
  • Power source type: DC
  • Power consumption (typical): 11
  • Power over Ethernet (PoE): Yes
  • Operating relative humidity (H-H): 10 - 90
  • Operating temperature (T-T): -40 - 75
  • Depth: 32
  • Height: 95
  • Weight: 355
  • Width: 115
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00189
  • Unit Calculated Weight: 0.6
Specifications
AC adapter includedYes
Access Control List (ACL)Yes
Antenna designExternal
Authentication methodX.509
Auto MDI/MDI-XYes
Built-in processorYes
Cabling technology10/100/1000Base-T(X)
DC-in jackYes
Depth32
DHCP clientYes
DHCP serverYes
DMZ supportYes
Dynamic DNS (DDNS)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports3
Ethernet LAN data rates10/100/1000
Ethernet LAN interface typeGigabit Ethernet
Ethernet WANYes
FilteringYes
FirewallYes
Firmware upgradeableYes
Flash memory256
Flow control supportYes
Full duplexYes
Guest accessYes
Height95
Internal memory256
IP address filteringYes
MAC address filteringYes
ManualYes
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11e/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
On/off switchYes
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-40 - 75
Plug and PlayYes
Policy-based routingYes
Port forwardingYes
Power consumption (typical)11
Power over Ethernet (PoE)Yes
Power source typeDC
Processor architectureARM Cortex A7
Processor cores4
Processor frequency717
Product colourWhite
Quality of Service (QoS) supportYes
Quick start guideYes
Reset buttonYes
Routing protocolsBGP/EIGRP/OSPF/RIP/RIP-1/RIP-2
Security algorithms128-bit WEP/192-bit AES/256-bit AES/64-bit WEP/AES-CCMP/DES/SNMP/SNMPv2/SNMPv3/SSH/SSL/TLS/TKIP/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK
SSID-based VLAN assignmentYes
Stateful Packet Inspection (SPI)Yes
Static routeYes
SummaryTeltonika RUTX10. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, 192-bit AES, 256-bit AES, AES-CCMP, DES, SNMP, SNMPv2, SNMPv3, SSH,..., Authentication method: X.509. Routing protocols: BGP, EIGRP, OSPF, RIP, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...
Supported network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, WOL
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Universal Plug and Play (UPnP)Yes
URL filteringYes
USB 2.0 ports quantity1
USB portYes
Wake-on-LAN readyYes
WAN connection typeRJ-45
Web-based managementYes
Weight355
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Width115
WLAN data transfer rate (max)867
Specs
Category CodeWRO
Description

We created RUTX10 Enterprise module specially for small to mid-size office application. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and lag-free browsing experience. RUTX10 has all the latest security features and ability to monitor and control your office data usage remotely.

Highly customizable RutOS is at the soul of RUTX10, but it’s actually synergy between hardware and software that makes this device perfect performer in enterprise solutions. Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality and if what we offer is not enough there is 256 MBytes Flash memory to install additional protocols.

Model nameRUTX10
NameNET ROUTER 1000M 4PORT/RUTX10 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/b96afb12-3bc1-48d5-abce-6a520edddc78.Jpeg
Product TypeTabletop router
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/b96afb12-3bc1-48d5-abce-6a520edddc78.Jpeg
Unit Calculated Volume0.00189
Unit Calculated Weight0.6
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/product/rutx10/#description
