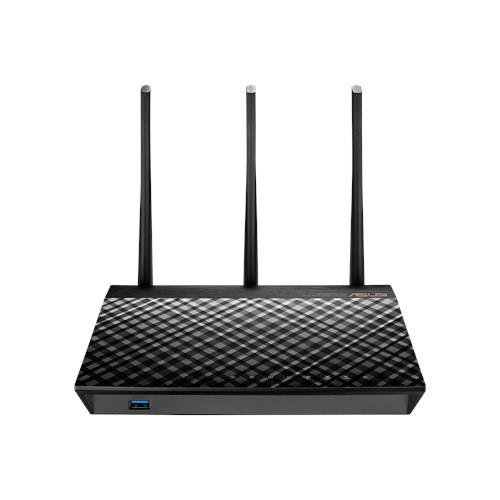

Tabletop router

Technical Specifications

• Summary: ASUS RT-AC1900U. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1900 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, HTTPS, SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, Authentication method: RADIUS, Firewall security: Parental control. Management protocols: IGMP v1/v2/v3, Supported network protocols: IPv4, IPv6. Product type: Tabletop router, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS)
• Vendor Homepage: https://www.asus.com/Networking/RT-AC1900U/overview/
• Name: WRL ROUTER 1900MBPS 1000M 4P/DUAL BAND RT-AC1900U ASUS
• Category Code: WRO
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
• WLAN data transfer rate (max): 1900
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
• WLAN data transfer rate (first band): 600
• WLAN data transfer rate (second band): 1300
• Channel bandwidth: 20
• Ethernet WAN: Yes
• DSL WAN: Yes
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11d/IEEE 802.11g/IEEE 802.11n
• Flow control support: Yes
• Port forwarding: Yes
• Automatic channel selection: Yes
• VPN Passthrough: Yes
• VPN support: Automatic IP PPPoE PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through
• Ethernet LAN (RJ-45) ports: 4
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• DC-in jack: Yes
• Web-based management: Yes
• Web-based setup wizard: Yes
• Quality of Service (QoS) support: Yes
• Reset button: Yes
• WPS push button: Yes
• Security algorithms: 128-bit WEP/64-bit WEP/HTTPS/SSID/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK
• Authentication method: RADIUS
• Firewall: Yes
• Firewall security: Parental control
• Guest access: Yes
• Port-based Network Access Control (PNAC): Yes
• Stateful Packet Inspection (SPI): Yes
• DoS attack prevention: Yes
• Filtering: Yes
• MAC address filtering: Yes
• MAC address table: 32
• IP address filtering: Yes
• URL filtering: Yes
• System event log: Yes
• DMZ support: Yes
• Network address translation (NAT): Yes
• NAT functionality: PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through
• DHCP client: Yes
• DHCP server: Yes
• Universal Plug and Play (UPnP): Yes
• Management protocols: IGMP v1/v2/v3
• Supported network protocols: IPv4, IPv6
• Product colour: Black
• Housing material: Acrylonitrile butadiene styrene (ABS)
• Wall mountable: Yes
• Indication light: Yes
• LED indicators: LAN,Power,WAN,WLAN
• On/off switch: Yes
• Product type: Tabletop router
• Cables included: LAN (RJ-45)
• AC adapter included: Yes
• Manual: Yes
• Quick start guide: Yes
• Certification: CE
• Antenna design: External
• Antenna connector type: SMA dipole
• Antenna gain level (max): 3.28
• Antennas quantity: 3
• Plug and Play: Yes
• Firmware upgradeable: Yes
• Power source type: AC,DC
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Output voltage: 19
• Output current: 1.75
• Operating relative humidity (H-H): 50 - 90
• Operating temperature (T-T): 0 - 40
• Storage relative humidity (H-H): 20 - 90
• Storage temperature (T-T): 0 - 70
• Windows operating systems supported: Wind/Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 Pro/Windows 10 Pro x64/Windows 7/Windows 7 Enterprise/Windows 7 Enterprise x64
• Linux operating systems supported: Yes
• Mac operating systems supported: MAC/Mac OS X 10.0 Cheetah/Mac OS X 10.1 Puma/Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.2 Jaguar/Mac OS X 10.3 Panther/Mac OS X 10.4 Tiger/Mac OS X 10.5 Leopard/Mac OS X 10.6 Snow Leopard
• Mac compatibility: Yes
• Depth: 148
• Height: 45
• Weight: 660
• Width: 218
• Package type: Box
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006237
• Unit Calculated Weight: 1.4
