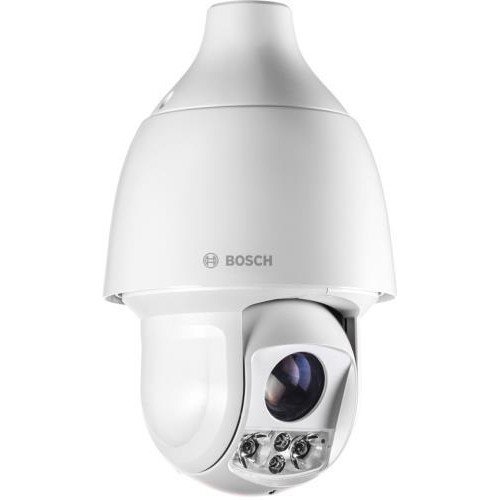

NET CAMERA 2MP IR PTZ DOME/NDP-5512-Z30L BOSCH

Technical Specifications

• Summary: Bosch AUTODOME IP starlight 5000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.004 lx, Field of view (FOV) angle: 60.9°, Tilt angle range: -90 - 3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1945 x 1097 pixels. Optical zoom: 30x, Digital zoom: 16x, Focal length range: 4.5 - 135 mm
• Vendor Homepage: https://www.boschsecurity.com/
• Name: NET CAMERA 2MP IR PTZ DOME/NDP-5512-Z30L BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Plastic
• International Protection (IP) code: IP66
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Dynamic range: 120
• Languages support: Dutch/English/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish
• Number of languages: 11
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.004
• Field of view (FOV) angle: 60.9
• Tilt angle range: -90 - 3
• Tilt speed: 160
• Pan range: 0 - 360
• Pan preset speed: 240
• Camera shutter type: Electronic
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Number of effective pixels (H x V): 1945 x 1097
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 30
• Digital zoom: 16
• Number of lenses: 1
• Focal length range: 4.5 - 135
• Auto focus: Yes
• Focus: Motorized/Manual
• Maximum aperture number: 4.4
• Minimum aperture number: 1.6
• Night vision: Yes
• Night vision distance: 180
• LED type: IR
• Number of illumination LEDs: 4
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2.13
• Video compression formats: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/768 x 432
• Supported video modes: 1080p/720p
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Privacy masking: Yes
• Audio input channels: 1.0
• Audio output channels: 1.0
• Voice codecs: AAC/G.711
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3at
• Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), D
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Headphone outputs: 1
• DC-in jack: Yes
• Alarm input channels: 2
• Alarm output channels: 1
• Security algorithms: 3DES/AES/DES/SSL/TLS
• Power source type: AC,PoE
• Power consumption (max): 25
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 0 - 90
• Height: 346.6
• Diameter: 207
• Weight: 4600
• Number of cameras: 1
• Mounting brackets included: Yes
• Screws included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02731
• Unit Calculated Weight: 5.5
