NET CAMERA ACC CORNER BRACKET/5507-601 AXIS

Technical Specifications

• Description:

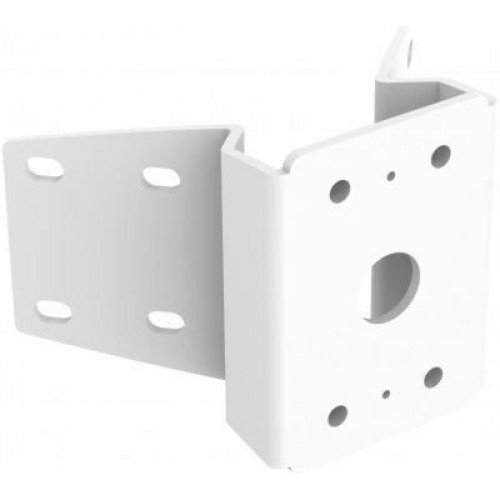

  AXIS T94R01B Corner Bracket is made of powder-coated aluminum and it is compatible with the wall mount of Axis’ camera housings. It is suitable for mounting the cameras to the outer corners of a building. For P- and Q-line fixed dome cameras, AXIS T91E61 Wall Mount can be used. Small-size fixed dome and bullet cameras can also be mounted on AXIS T94R01B thanks to the commonly used hole pattern of a single gang junction box.

  • For outdoors and indoors – corners
  • Flexibility – covers many different camera types
  • Resistant to corrosion
  • Sturdy and safe

• Vendor Homepage: www.axis.com/ph/en/products/camera-mounts/axis-t94r01b-corner-bracket
• Name: NET CAMERA ACC CORNER BRACKET/5507-601 AXIS
• Category Code: NCC
• Option for Models: Axis M1113-E, M1114-E, M1124-E, M1125-E, P1343-E, P1344-E, P1346-E, P1347-E, P1353-E, P1354-E, P1355-E, P1357-E, P1364-E, P1365-E, P1365-E Mk II, P3214-V, P3214-VE, P3215-V, P3215-VE, P3224-LV, P3224-LVE, P3225-LV, P3225-LVE, Q1602-E, Q1604-E, Q1614-E, Q1615-E, Q1615-E Mk II, Q1635-E, Q1755-E, Q1765-LE, Q1775-E, Q1910-E, Q1921-E, Q1922-E, Q1931-E, Q1932-E, Q1941-E, Q1942-E, and Q2901-E
• Colour: White
• Dimensions: 171.7 x 120 x 102 mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00396
• Product Net Weight: 0.35
• Unit Calculated Weight: 0.63
