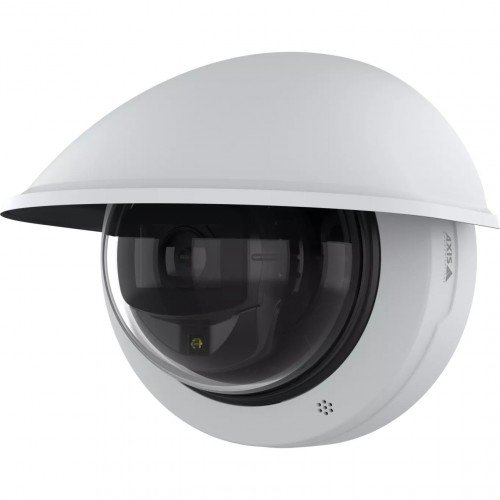

NET CAMERA M4225-LVE DOME/02814-001 AXIS

Technical Specifications

• Summary: Axis 02814-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-m4225-lve
• Name: NET CAMERA M4225-LVE DOME/02814-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Wall
• Product colour: Black/White
• LED indicators: Yes
• Housing material: Plastic/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Weatherproof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Auto-tracking: Yes
• Tour recording: Yes
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.03
• Angle of rotation: 360
• Lens viewing angle, horizontal: 100
• Lens viewing angle, vertical: 52
• Tilt angle range: -10 - 65
• Pan range: -180 - 180
• Camera pixel size: 2.9
• Camera shutter speed: 1/20000 - 1.5
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Number of lenses: 1
• Focal length range: 3.2 - 7.2
• Auto focus: Yes
• Maximum aperture number: 2.7
• Minimum aperture number: 2.9
• Closest focusing distance: 1
• Detect distance (tele): 101.8
• Detect distance (wide): 43.7
• Identify distance (tele): 10.2
• Identify distance (wide): 4.4
• Observe distance (tele): 40.4
• Observe distance (wide): 17.4
• Recognize distance (tele): 20.4
• Recognize distance (wide): 8.8
• Night vision: Yes
• Night vision distance: 20
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Supported graphics resolutions: 1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360
• Frame rate: 30
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Text caption overlay: Yes
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
• Streaming method: Multicast
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8000
• RAM capacity: 1000
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Abandoned object/Line crossing detection/Moving object
• Privacy protection: Yes
• Security algorithms: EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
• Cloud-managed: Yes
• Power source type: PoE
• Power consumption (typical): 2.7
• Power consumption (max): 10.5
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 140
• Depth: 112
• Height: 126
• Weight: 540
• Compliance certificates: BSMI/CE/cUL/EAC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI
• Number of cameras: 1
• Sun shield included: Yes
• Manual: Yes
• Doesnt contain: Brominated Flame Retardant (BFR)/CFR/PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0036
• Unit Calculated Weight: 0.5
