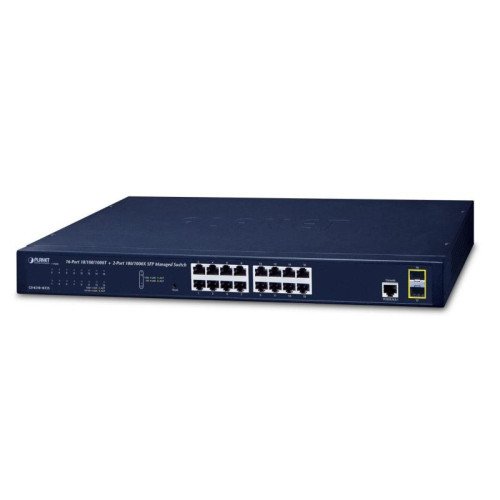

NET SWITCH 16PORT 1000M/GS-4210-16T2S PLANET

Technical Specifications

• Summary: PLANET GS-4210-16T2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.planet.com.tw/en/product/gs-4210-16t2s
• Name: NET SWITCH 16PORT 1000M/GS-4210-16T2S PLANET
• Category Code: SWI
• Model name: GS-4210-16T2S
• Switch type: Managed
• Switch layer: L2/L4
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Traffic classification: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• SFP module slots quantity: 2
• Console port: RJ-45
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• MAC address auto-aging supported: Yes
• MAC address auto-learning supported: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Private VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 1000BASE-X
• Switching capacity: 36
• Throughput: 26.7
• MAC address table: 8000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Authentication: Port-based authentication
• BPDU filtering/protection: Yes
• IP-MAC-Port binding: Yes
• Loop protection: Yes
• MAC address filtering: Yes
• Security algorithms: 802.1x RADIUS/HTTPS/SSH/SSL/TLS
• Multicast support: Yes
• Management protocols: web, telnet, SNMP
• Supported network protocols: IPv4 / IPv6
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Blue
• Housing material: Metal
• Reset button: Yes
• LED indicators: Yes
• Firmware upgradeable: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Input current: 0.8
• Power consumption (max): 10.4
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -10 - 70
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 35
• Width: 445
• Depth: 207
• Height: 45
• Weight: 2000
• Certification: FCC, CE
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01512
• Unit Calculated Weight: 2
