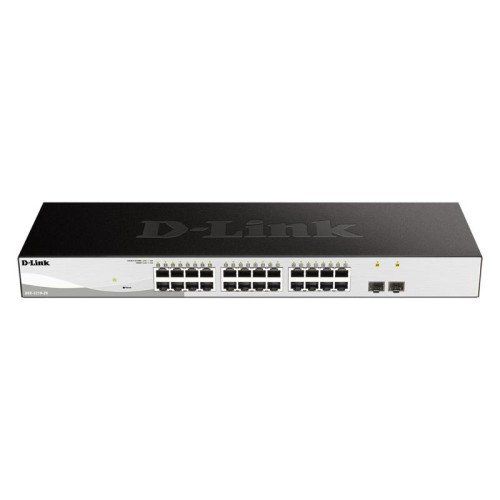

DGS-1210-26

Technical Specifications

• Summary: D-Link 26-Port Gigabit Smart Managed Switch including 2 SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
• Vendor Homepage: www.dlink.com/en/products/dgs-1210-26-26-port-gigabit-smart-managed-switch
• Name: NET SWITCH 26PORT 1000 2SFP/DGS-1210-26 D-LINK
• Category Code: SWI
• Model: DGS-1210-26
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Traffic classification: Yes
• System event log: Yes
• MIB support: RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Console port: RJ-45
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ah/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• 10G support: Yes
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• IP routing: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN/Tagged VLAN
• Switching capacity: 52
• Throughput: 38.7
• MAC address table: 8000
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• BPDU filtering/protection: Yes
• Loop protection: Yes
• Security algorithms: 802.1x RADIUS/SNMP/SSH
• SSH/SSL support: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Black/Grey
• LED indicators: Activity/Fan fail/Link/Power/Speed
• Number of fans: 2
• Safety: CCC, CE LVD, UL/cUL
• Electromagnetic compatibility: FCC A, CE A, VCCI, C-Tick, BSMI, CCC
• Memory type: DDR3-SDRAM
• Internal memory: 128
• Flash memory: 32
• Mean time between failures (MTBF): 1082534
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (typical): 15.11
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 90
• Heat dissipation: 51.57
• Width: 440
• Depth: 140
• Height: 44
• Weight: 2060
• Package width: 249
• Package depth: 493
• Package height: 72
• Package weight: 3132
• Master (outer) cases per pallet (air): 24
• Master (outer) cases per pallet (sea): 36
• Pallet gross length: 1100
• Pallet gross weight (air): 422364
• Pallet gross weight (sea): 621296
• Pallet gross width: 1200
• Pallet height (air): 1303
• Pallet height (sea): 1887
• Products per pallet (air): 120
• Products per pallet (sea): 180
• Products per shipping (inner) case: 5
• Shipping (inner) case gross weight: 16536
• Shipping (inner) case height: 282
• Shipping (inner) case length: 510
• Shipping (inner) case net weight: 15660
• Shipping (inner) case width: 381
• Certification: IEC61000-4-5, RoHS
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00875
• Unit Calculated Weight: 2.9
