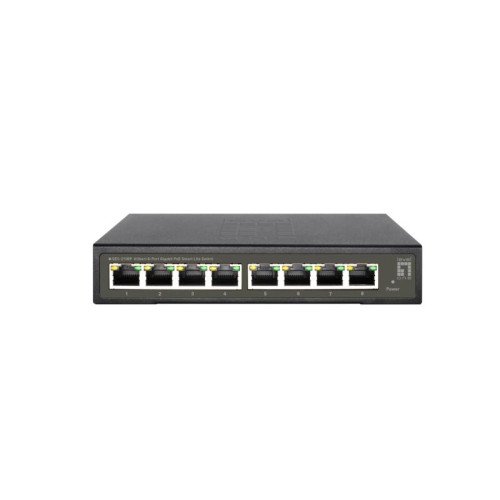

NET SWITCH 8PORT 8POE 1000M/GES-2108P LEVELONE

NET SWITCH 8PORT 8POE 1000M/GES-2108P LEVELONE
NET SWITCH 8PORT 8POE 1000M/GES-2108P LEVELONE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 16
Врз основа на 0 коментари. - Напиши коментар
12,135ден.
  • Достапност: Има залиха
  • Шифра: 430885
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
LEVELONE
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... DC input voltage: 54 V. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.level1.com/level1_en/ges-2108p-hilbert-8-port-gigabit-poe-smart-lite-switch-802-3at-af-poe-8-poe-outputs-112-8w-poe-power-budget-52090803101
  • Name: NET SWITCH 8PORT 8POE 1000M/GES-2108P LEVELONE
  • Category Code: SWI
  • Model name: GES-2108P
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 16
  • MAC address table: 4000
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 1.5
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Product colour: Black
  • LED indicators: Activity/Link/PoE
  • Flash memory: 2
  • Noise level: 0
  • Fanless: Yes
  • Mean time between failures (MTBF): 43800
  • Power source: DC/PoE
  • Power supply included: Yes
  • DC input voltage: 54
  • Input current: 2.2
  • Power consumption (max): 120
  • Surge protection: Yes
  • Surge protection voltage: 8
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 112.8
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Heat dissipation: 27.3
  • Width: 160
  • Depth: 95
  • Height: 29
  • Weight: 400
  • Cables included: AC
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 310
  • Package depth: 230
  • Package height: 65
  • Package weight: 1300
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS
  • Master (outer) cases per pallet (air): 18
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1584
  • Certification: UKCA, FCC Class A
  • Master (outer) case net weight: 600
  • Country of origin: China
  • Master (outer) case width: 350
  • Master (outer) case length: 330
  • Master (outer) case height: 480
  • Master (outer) case gross weight: 13600
  • Products per master (outer) case: 10
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.004278
  • Unit Calculated Weight: 2
