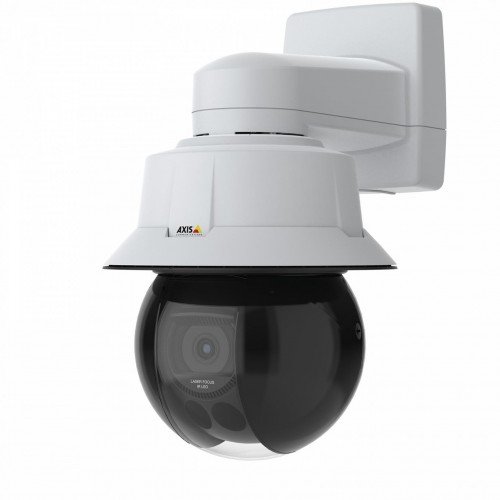

NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS

Technical Specifications

• Summary: Axis 02446-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.11 lx, Lens viewing angle, horizontal: 58.5°, Lens viewing angle, vertical: 34.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
• Vendor Homepage: https://www.axis.com/products/axis-q6318-le
• Name: NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS
• Category Code: FNC
• Model: AXIS Q6318-LE 50 Hz
• Mounting type: Wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-7
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Certification: EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.11
• Lens viewing angle, horizontal: 58.5
• Lens viewing angle, vertical: 34.9
• Tilt angle range: -90 - 20
• Tilt speed: 500
• Pan speed: 550
• Camera shutter speed: 1/8500 - 1/5
• Optical sensor size: 1/2
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 31
• Digital zoom: 12
• Focal length range: 6.91 - 214.64
• Auto focus: Yes
• Maximum aperture number: 4.6
• Minimum aperture number: 1.36
• Night vision: Yes
• Night vision distance: 200
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 3840 x 2160
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 25
• Video streaming: Yes
• Privacy masking: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3bt
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Flash memory: 512
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Digest authentication: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Network access storage (NAS): Yes
• Video motion detection: Yes
• Power source type: PoE
• AC input voltage: 100 - 240
• Power consumption (typical): 17
• Power consumption (max): 51
• Operating temperature (T-T): -50 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Height: 261
• Diameter: 239
• Weight: 4800
• Number of cameras: 1
• Manual: Yes
• Packaging content: Windows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03028
• Unit Calculated Weight: 4
