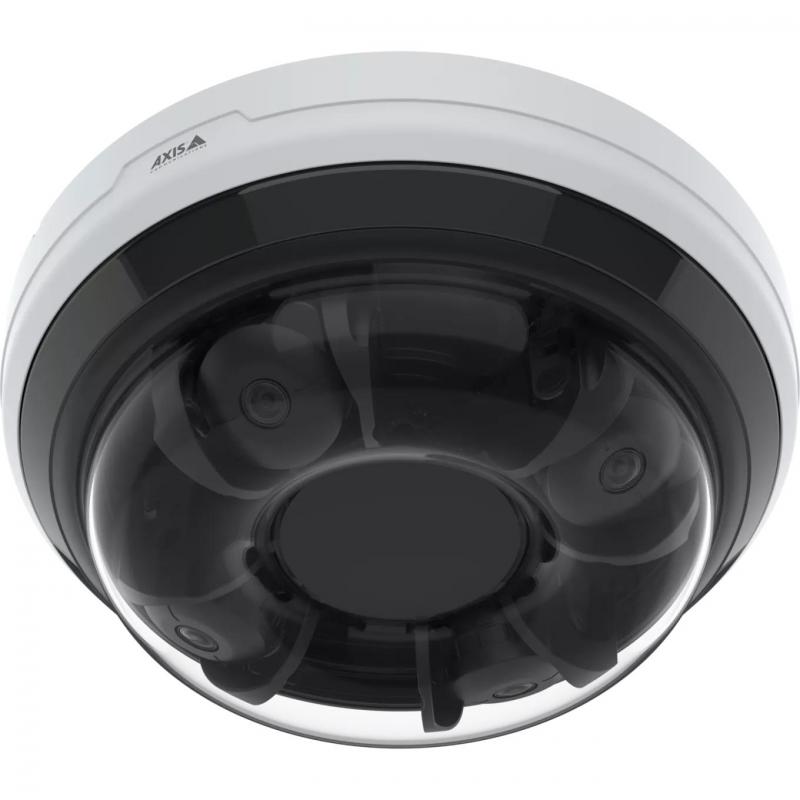

NET CAMERA P3747-PLVE 20MP/02897-001 AXIS

NET CAMERA P3747-PLVE 20MP/02897-001 AXIS
NET CAMERA P3747-PLVE 20MP/02897-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
141,569ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 440801
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02897-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Horizontal field of view (thermal module): 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.78 mm (1 / 2.78"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-p3747-plve#part-numbers
  • Name: NET CAMERA P3747-PLVE 20MP/02897-001 AXIS
  • Category Code: FNC
  • Model: 02897-001
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • LED indicators: Activity
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Preset points: Yes
  • Maximum operating distance: 20
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Remote viewing: Yes
  • Built-in light: Yes
  • Languages support: Arabic/Czech/Dutch/English/Finnish/French/Greek/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 19
  • Camera tilt control: Yes
  • Minimum illumination: 0.1
  • Horizontal field of view (thermal module): 360
  • Lens viewing angle, horizontal: 360
  • Lens viewing angle, vertical: 71.5 - 30.0
  • Camera pixel size: 2
  • Camera shutter speed: 1/19500 - 1
  • Sensor type (panoramic camera): CMOS
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 1/2.78
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 3
  • Focal length range: 3.18 - 7.42
  • Fixed focus: Yes
  • Focus: Motorized
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Number of illumination LEDs: 2
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Video compression formats: M-JPEG/MPEG/MPEG4
  • Supported graphics resolutions: 2560 x 1440/2592 x 1944/640 x 360/640 x 480 (VGA)
  • Video recording: Yes
  • Frame rate: 20
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Built-in speaker(s): Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio input channels: 2.0
  • Audio output channels: 2.0
  • Audio formats supported: RTSP
  • Frequency range: 50 - 60
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
  • Number of simultaneous live view channels: 4
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Human detection/Vehicle detection
  • IP address filtering: Yes
  • Motion sensor: Yes
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/FIPS 140-2/HTTPS/SNMP
  • Video motion detection: Yes
  • Remotely operated: Yes
  • Power source type: PoE
  • Power consumption (typical): 10.8
  • Power consumption (max): 23.7
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 141
  • Depth: 220
  • Height: 75
  • Weight: 3000
  • License plate recognition: Yes
  • Compliance certificates: BSMI/CE/cUL/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
  • Number of cameras: 1
  • Mounting kit: Yes
  • Mounting brackets included: Yes
  • Memory card included: Yes
  • Manual: Yes
  • Doesnt contain: BFR/CFR/PVC
  • Warranty period: 5
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02082
  • Unit Calculated Weight: 3
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedRTSP
Audio input channels2.0
Audio output channels2.0
Audio system2-way
Audio system full duplexYes
Bit rate controlVariable Bit Rate (VBR)
Built-in lightYes
Built-in speaker(s)Yes
Camera pixel size2
Camera shutter speed1/19500 - 1
Camera tilt controlYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesBSMI/CE/cUL/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
Connectivity technologyWired
Day/night modeYes
Depth220
Digest authenticationYes
Doesn\'t containBFR/CFR/PVC
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focusYes
Flash memory8192
Focal length range3.18 - 7.42
FocusMotorized
Form factorDome
Frame rate20
Frequency range50 - 60
Height75
Horizontal field of view (thermal module)360
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Human and vehicle targets classificationYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Image stabilizerYes
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresHuman detection/Vehicle detection
International Protection (IP) codeIP66
IP address filteringYes
Languages supportArabic/Czech/Dutch/English/Finnish/French/Greek/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED indicatorsActivity
LED typeIR
Lens viewing angle, horizontal360
Lens viewing angle, vertical71.5 - 30.0
License plate recognitionYes
ManualYes
Maximum operating distance20
Maximum resolution2592 x 1944
Memory card includedYes
Minimum illumination0.1
Motion sensorYes
Mounting brackets includedYes
Mounting kitYes
Mounting typeCeiling/wall
Network access storage (NAS)Yes
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance20
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of illumination LEDs2
Number of languages19
Number of lenses3
Number of sensors1
Number of simultaneous live view channels4
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.78
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)23.7
Power consumption (typical)10.8
Power source typePoE
Preset pointsYes
Privacy maskingYes
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
RAM capacity4096
Remote viewingYes
Remotely operatedYes
Security algorithms256-bit AES-XTS/FIPS 140-2/HTTPS/SNMP
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 02897-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Horizontal field of view (thermal module): 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.78 mm (1 / 2.78"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions2560 x 1440/2592 x 1944/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Text caption overlayYes
Total megapixels5
TypeIP security camera
Video compression formatsM-JPEG/MPEG/MPEG4
Video formats supportedH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Video recordingYes
Video streamingYes
Warranty period5
Weight3000
Wide Dynamic Range (WDR)Yes
Width141
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7

Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security

This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

  • 4*5 MP at 20 fps per channel
  • Remote pan, tilt, roll, zoom (PTRZ)
  • Support for powerful analytics
  • 360° IR illumination with individually controlled LEDs
  • Built-in cybersecurity with Axis Edge Vault

Model02897-001
NameNET CAMERA P3747-PLVE 20MP/02897-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/367adc7f-2591-4d5c-a009-6d54e6e64a8a.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/367adc7f-2591-4d5c-a009-6d54e6e64a8a.Jpeg
Unit Calculated Volume0.02082
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p3747-plve#part-numbers
